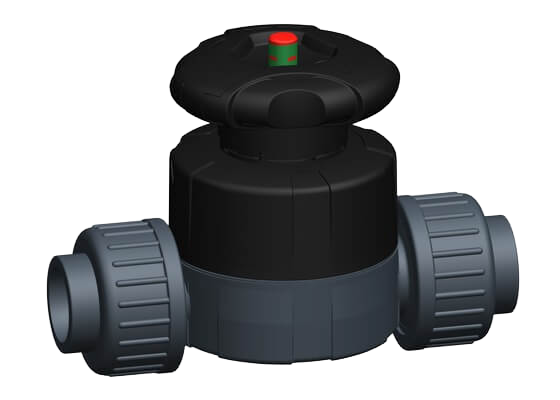

Diaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PVC-U
- Dvojnásobně vyšší průtok ve srovnání se staršími typy ventilů
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Ruční kolo s vestavěným zámkem
- Krátká celková stavební délka
Další možnosti:
- Individuální konfigurace ventilu
- Samoregulační multifunkční modul s integrovanými limitními spínači
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 800047166 EPDM | 15 | 16 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047166 EPDM |
| 800047167 EPDM | 20 | 16 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047167 EPDM |
| 800047168 EPDM | 25 | 16 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047168 EPDM |
| 800047169 EPDM | 32 | 16 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047169 EPDM |
| 800047170 EPDM | 40 | 16 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047170 EPDM |
| 800047171 EPDM | 50 | 16 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047171 EPDM |
| 800047160 PTFE/EPDM | 15 | 16 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047160 PTFE/EPDM |
| 800047161 PTFE/EPDM | 20 | 16 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047161 PTFE/EPDM |
| 800047162 PTFE/EPDM | 25 | 16 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047162 PTFE/EPDM |
| 800047163 PTFE/EPDM | 32 | 16 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047163 PTFE/EPDM |
| 800047164 PTFE/EPDM | 40 | 16 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047164 PTFE/EPDM |
| 800047165 PTFE/EPDM | 50 | 16 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type 514 PVC-U, Union with solvent cement sockets metric, PN16 · Product code 800047165 PTFE/EPDM |
