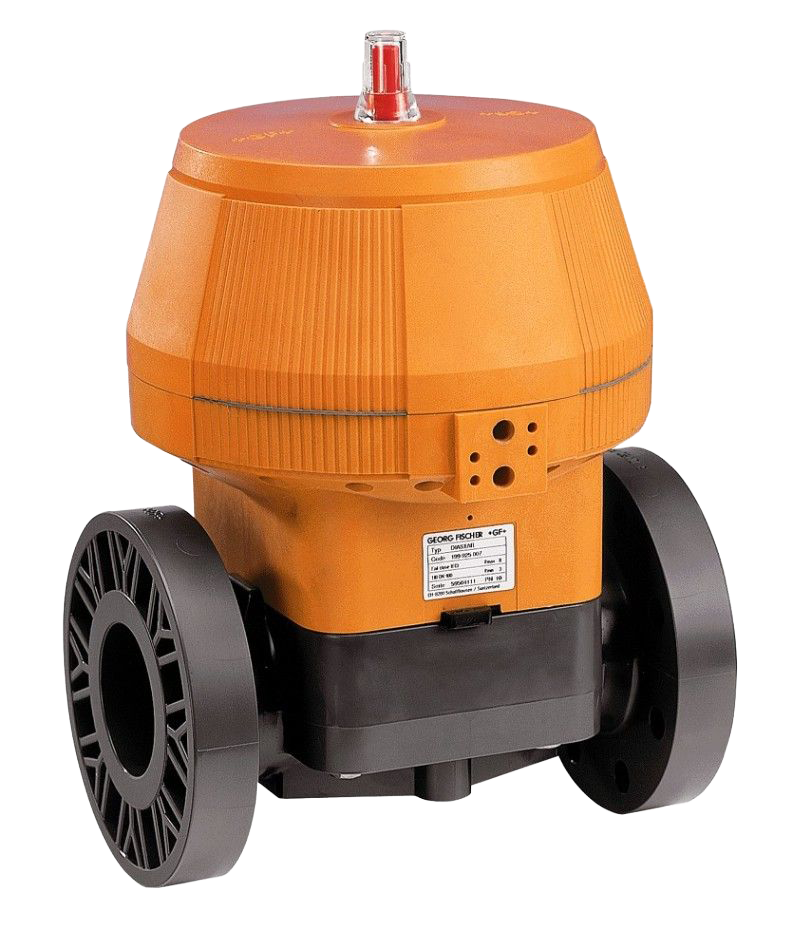

Diaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Connecting dimension:
- With position indicator / Working pressure: one side
- * with backing flanges PVC-U metric
- ** DN80, DN100 and DN150 fixed flanges metric and inch ANSI B16.5
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | Popis | |
|---|---|---|---|---|---|---|---|
| 199025127 EPDM | 65 | 2 1/2 | 75 | 10 | 992 | * |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025127 EPDM |
| 199025128 EPDM | 80 | 3 | 90 | 10 | 1700 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025128 EPDM |
| 199025129 EPDM | 100 | 4 | 110 | 6 | 2700 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025129 EPDM |
| 199025130 EPDM | 150 | 6 | 160 | 6 | 6033 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025130 EPDM |
| 199025157 PTFE/EPDM | 65 | 2 1/2 | 75 | 10 | 992 | * |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025157 PTFE/EPDM |
| 199025068 FKM | 80 | 3 | 90 | 10 | 1700 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025068 FKM |
| 199025158 PTFE/EPDM | 80 | 3 | 90 | 10 | 1700 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025158 PTFE/EPDM |
| 199025069 FKM | 100 | 4 | 110 | 6 | 2700 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025069 FKM |
| 199025159 PTFE/EPDM | 100 | 4 | 110 | 6 | 2700 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025159 PTFE/EPDM |
| 199025070 FKM | 150 | 6 | 160 | 6 | 6033 | ** |
Inquiry Enter quantityDiaphragm valve type DIASTAR PVC-U, Series 025 FC (Fail safe to close)/With fixed flanges PVC-U metric · Product code 199025070 FKM |
