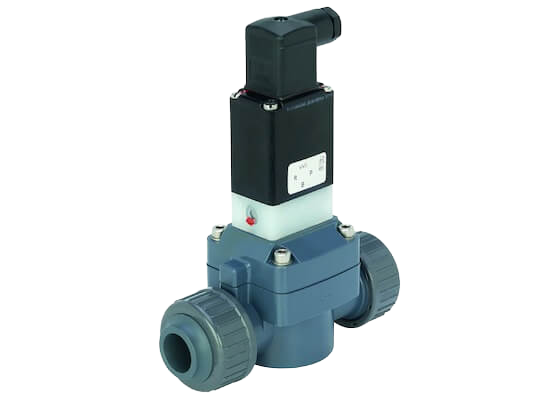

Solenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- PN 0.5-6bar
- Material PVC-U: with solvent cement socket metric
- Protection class IP 65
- Electrical connection: cable plug
- With manual override
- Circuit function A: FC, closed in rest position
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199165022 EPDM | 15 | 1/2 | 20 | 6 | 83 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165022 EPDM |
| 199165023 EPDM | 20 | 3/4 | 25 | 6 | 100 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165023 EPDM |
| 199165024 EPDM | 25 | 1 | 32 | 6 | 233 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165024 EPDM |
| 199165025 EPDM | 32 | 1 1/4 | 40 | 6 | 267 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165025 EPDM |
| 199165026 EPDM | 40 | 1 1/2 | 50 | 6 | 500 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165026 EPDM |
| 199165027 EPDM | 50 | 2 | 63 | 6 | 600 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165027 EPDM |
| 199165072 FKM | 15 | 1/2 | 20 | 6 | 83 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165072 FKM |
| 199165073 FKM | 20 | 3/4 | 25 | 6 | 100 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165073 FKM |
| 199165074 FKM | 25 | 1 | 32 | 6 | 233 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165074 FKM |
| 199165075 FKM | 32 | 1 1/4 | 40 | 6 | 267 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165075 FKM |
| 199165076 FKM | 40 | 1 1/2 | 50 | 6 | 500 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165076 FKM |
| 199165077 FKM | 50 | 2 | 63 | 6 | 600 |
Inquiry Enter quantitySolenoid valve type 165 PVC-U, straight-through valve 2/2 ways/24V DC · Product code 199165077 FKM |
