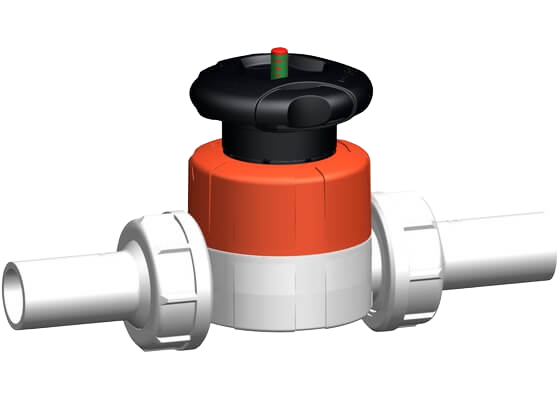

Diaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10
Manufacturer
GEORG FISCHER +GF+
Product description
Provedení:
- Materiál: PVDF-HP
- Dvojnásobně vyšší průtok ve srovnání s předchozími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Ruční kolo s vestavěným zámkem
- Jednoduchá montáž a demontáž
- Krátká celková stavební délka
Volitelně:
- Individuální konfigurace ventilu
- Samoregulační multifunkční modul s integrovanými spínači koncových poloh
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 181514132 PTFE/EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514132 PTFE/EPDM |
| 181514133 PTFE/EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514133 PTFE/EPDM |
| 181514134 PTFE/EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514134 PTFE/EPDM |
| 181514135 PTFE/EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514135 PTFE/EPDM |
| 181514136 PTFE/EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514136 PTFE/EPDM |
| 181514137 PTFE/EPDM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514137 PTFE/EPDM |
| 181514152 PTFE/FKM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514152 PTFE/FKM |
| 181514153 PTFE/FKM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514153 PTFE/FKM |
| 181514154 PTFE/FKM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514154 PTFE/FKM |
| 181514155 PTFE/FKM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514155 PTFE/FKM |
| 181514156 PTFE/FKM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514156 PTFE/FKM |
| 181514157 PTFE/FKM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve SYGEF Plus type 514, with butt fusion spigots metric, PN10 · Product code 181514157 PTFE/FKM |
