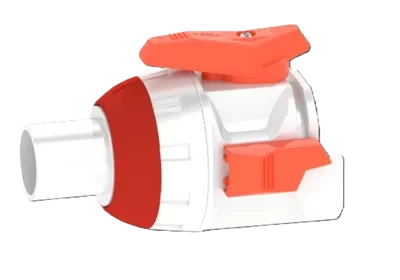

Quick Connect Valve 700 (QC7) Swiveled end-connection: PP-H/PVDF Spigot (Infrared fusion)
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Protection cap
- Face seal: EPDM
- O-Rings: EPDM
- Ball seat: PTFE
- Lever: PP-GF30
- Valve body: PVDF
- Fluid loss: Approx 5,5cc.
- Color coding: Blue for supply // Red for return
- 360° swiveled end-connections
- Dual interlock lever mechanism
Option:
- Further connections on request.
Product variants
| Product code | DN [mm] | e [mm] | Velikost [inch] | d [mm] | PN | # | kv-hodnota (Δp=1 bar) [l/min] | DE [mm] | Cv 100 [gal/min] | |
|---|---|---|---|---|---|---|---|---|---|---|
| 735911705 | 25 | 2.4 | 1 | 32 | 10 | Hrdlo PVDF - Modrá | 570 | 70 | 39 |
Inquiry Enter quantityQuick Connect Valve 700 (QC7) Swiveled end-connection: PP-H/PVDF Spigot (Infrared fusion) · Product code 735911705 |
| 735911707 | 25 | 2.4 | 1 | 32 | 10 | Hrdlo PVDF - Červená | 570 | 70 | 39 |
Inquiry Enter quantityQuick Connect Valve 700 (QC7) Swiveled end-connection: PP-H/PVDF Spigot (Infrared fusion) · Product code 735911707 |
| 735911709 | 25 | 2.9 | 1 | 32 | 10 | Hrdlo PP-H - Modrá | 570 | 70 | 39 |
Inquiry Enter quantityQuick Connect Valve 700 (QC7) Swiveled end-connection: PP-H/PVDF Spigot (Infrared fusion) · Product code 735911709 |
| 735911711 | 25 | 2.9 | 1 | 32 | 10 | Hrdlo PP-H - Červená | 570 | 70 | 39 |
Inquiry Enter quantityQuick Connect Valve 700 (QC7) Swiveled end-connection: PP-H/PVDF Spigot (Infrared fusion) · Product code 735911711 |
