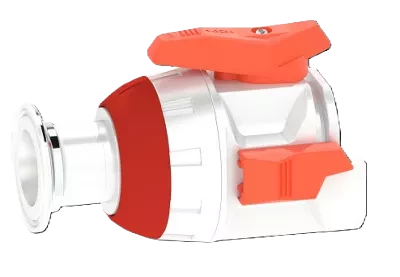

Quick Connect Valve 700 (QC7) Swiveled end-connection: Sanitary clamp 1"
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Protection cap
- Face seal: EPDM
- O-Rings: EPDM
- Ball seat: PTFE
- Lever: PP-GF30
- Valve body: PVDF
- Fluid loss: Approx 5,5cc.
- Color coding: Blue for supply // Red for return
- 360° swiveled end-connections
- Dual interlock lever mechanism
Option:
- Further connections on request.
Product variants
| Product code | DN [mm] | Velikost [inch] | PN | # | kv-hodnota (Δp=1 bar) [l/min] | Di [mm] | Do [mm] | DE [mm] | |
|---|---|---|---|---|---|---|---|---|---|
| 735911721 | 25 | 1 | 10 | Sanitární příruba 1" - Modrá | 570 | 30 | 50.5 | 70 |
Inquiry Enter quantityQuick Connect Valve 700 (QC7) Swiveled end-connection: Sanitary clamp 1" · Product code 735911721 |
| 735911723 | 25 | 1 | 10 | Sanitární příruba 1" - Červená | 570 | 30 | 50.5 | 70 |
Inquiry Enter quantityQuick Connect Valve 700 (QC7) Swiveled end-connection: Sanitary clamp 1" · Product code 735911723 |
