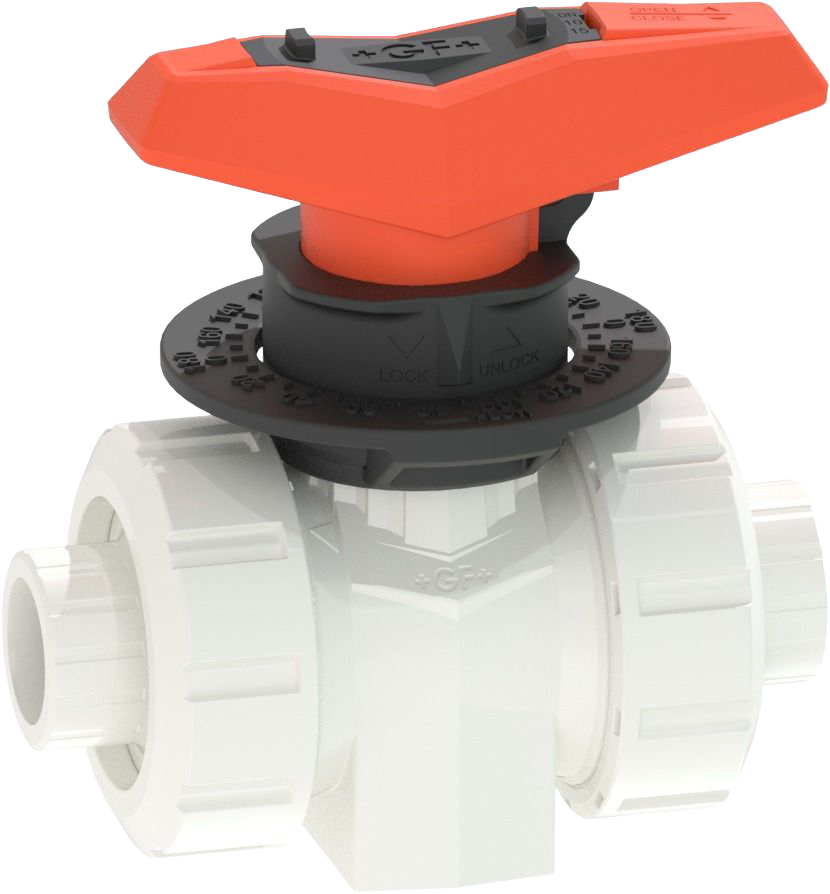

SYGEF Standard Metering ball valve type 523 Pro With fusion sockets metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PVDF
- Micro-doser
- Excellent control characteristics
- Designed for easy installation and removal
- Ball seat PTFE
- Angle of operation 180° with scale
- Integrated stainless steel mounting inserts
- Z-length, end connectors and union nuts compatible to Type 523
Option:
- Other materials on demand
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 175523411 FKM | 10 | 16 | 16 | 11 |
Inquiry Enter quantitySYGEF Standard Metering ball valve type 523 Pro With fusion sockets metric · Product code 175523411 FKM |
| 175523412 FKM | 15 | 20 | 16 | 20 |
Inquiry Enter quantitySYGEF Standard Metering ball valve type 523 Pro With fusion sockets metric · Product code 175523412 FKM |
