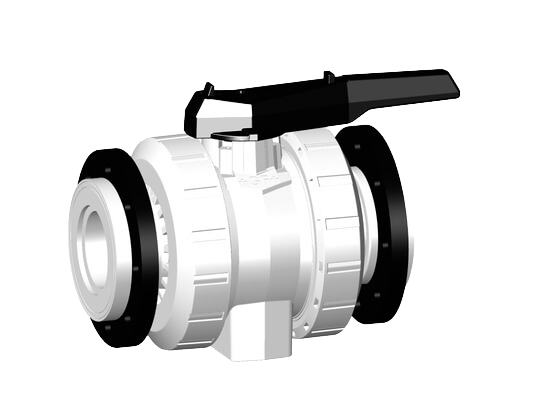

Ball valve type 546 Pro SYGEF Standard Silicone Free, with backing flanges PP-st metric
Manufacturer
GEORG FISCHER +GF+
Product description
Provedení:
- Materiál: PVDF SF / Silocone Free
- Snadná montáž/demontáž
- Těsnění koule PTFE
- Integrované nerezové montážní závity ve spodní části ventilu
- Rozměr-z, vložné díly a převlečná matice jsou kompatibilní s typem 546 (první generace)
- Celková stavební délka dle EN 558
- Připojovací rozměry: ISO 7005, EN 1092, BS 4504, DIN 2501
- Rozteč děr PN10
Možnosti:
- Individuální konfigurace ventilu
- Multifunkční modul s integrovanými kontakty koncových poloh
- Pneumatické nebo elektrické pohony +GF+
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 175546828 FKM | 65 | 16 | 75 | 5000 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with backing flanges PP-st metric · Product code 175546828 FKM |
| 175546829 FKM | 80 | 16 | 90 | 7000 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with backing flanges PP-st metric · Product code 175546829 FKM |
| 175546830 FKM | 100 | 16 | 110 | 11000 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with backing flanges PP-st metric · Product code 175546830 FKM |
