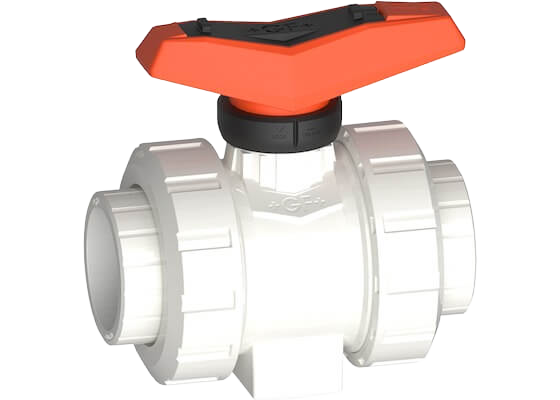

Ball valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PVDF / silicone free cleaned
- Lockable lever as standard (DN10-DN50)
- For easy installation and removal
- Ball seal: PVDF
- Integrated stainless steel mounting inserts
- Z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
- Ball seals PVDF
- Valve end and union nut are not compatible with type 346 (DN10/15-50) and type 370 (DN65-100)
Option:
- Interface-module with position feedback sensor, incl. LED feedback (DN10-50)
- Manual spring return lever ("Dead man") (DN10-25)
- Multifunctional module with integrated limit switches (DN65-100)
- Individual configuration of the valve possible
- Pneumatic or electric actuators from GF
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 175546691 FKM | 10 | 3/8 | 16 | 16 | 71 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546691 FKM |
| 175546692 FKM | 15 | 1/2 | 20 | 16 | 185 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546692 FKM |
| 175546693 FKM | 20 | 3/4 | 25 | 16 | 350 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546693 FKM |
| 175546694 FKM | 25 | 1 | 32 | 16 | 700 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546694 FKM |
| 175546695 FKM | 32 | 1 1/4 | 40 | 16 | 1000 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546695 FKM |
| 175546696 FKM | 40 | 1 1/2 | 50 | 16 | 1600 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546696 FKM |
| 175546697 FKM | 50 | 2 | 63 | 16 | 3100 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546697 FKM |
| 175546698 FKM | 65 | 2 1/2 | 75 | 16 | 5000 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546698 FKM |
| 175546699 FKM | 80 | 3 | 90 | 16 | 7000 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546699 FKM |
| 175546700 FKM | 100 | 4 | 110 | 16 | 11000 |
Inquiry Enter quantityBall valve type 546 Pro SYGEF Standard Silicone Free, with fusion sockets metric · Product code 175546700 FKM |
