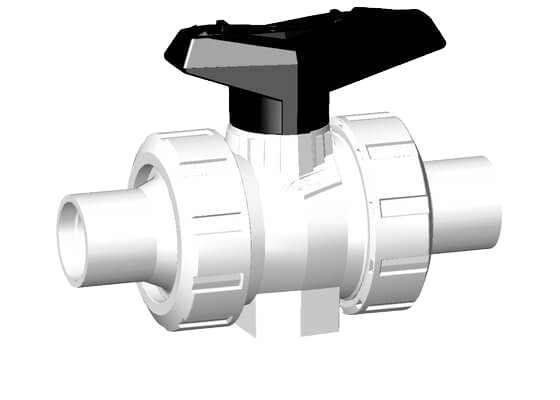

Ball valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PVDF OF / Oil Free (bez maziv, čištěný)
- Pro snadnou montáž/demontáž
- Těsnění koule PTFE
- Rozměr z, vložné díly a matice nejsou kompatibilní s typem 346
- Integrované nerezové montážní závity v tělese ventilu
Další možnosti:
- Individuální konfigurace kulového kohoutu
- Multifunkční modul s integrovanými spínači koncových poloh
- Pneumatické nebo elektrické pohony +GF+
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 175546492 FKM | 15 | 16 | 20 | 185 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546492 FKM |
| 175546493 FKM | 20 | 16 | 25 | 350 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546493 FKM |
| 175546494 FKM | 25 | 16 | 32 | 700 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546494 FKM |
| 175546495 FKM | 32 | 16 | 40 | 1000 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546495 FKM |
| 175546496 FKM | 40 | 16 | 50 | 1600 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546496 FKM |
| 175546497 FKM | 50 | 16 | 63 | 3100 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546497 FKM |
| 175546498 FKM | 65 | 16 | 75 | 5000 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546498 FKM |
| 175546499 FKM | 80 | 16 | 90 | 7000 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546499 FKM |
| 175546500 FKM | 100 | 16 | 110 | 11000 |
Inquiry Enter quantityBall valve type 546 PVDF OF, with butt fusion spigots IR-Plus metric · Product code 175546500 FKM |
