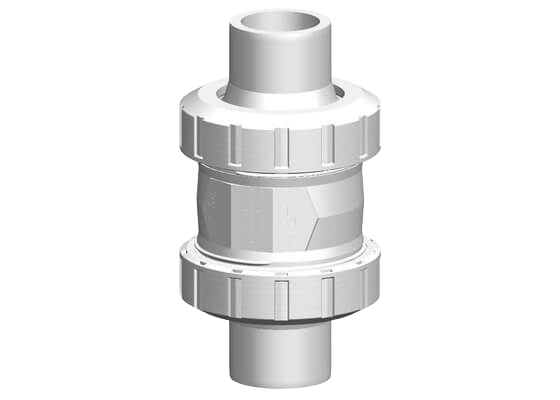

Check valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PVDF SF/Silicone Free, čištěný
- Konstruováno pro snadnou montáž a demontáž
- Bez vibrací i ve vysokých průtočných rychlostech
- Tvar zpětného kužele pro optimální průtok, dvojité uložení
- Instalační pozice vertikální
- Stavební délka shodná s kulovými kohouty typ 546
- Z-rozměr, vložné díly a převlečné matice nejsou kompatibilní s typem 360
Varování:
Ujistěte se, že průměr není zredukován svarovými výronky (nebezpečí turbulencí).
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 175561272 FKM | 15 | 16 | 20 | 180 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561272 FKM |
| 175561273 FKM | 20 | 16 | 25 | 380 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561273 FKM |
| 175561274 FKM | 25 | 16 | 32 | 460 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561274 FKM |
| 175561275 FKM | 32 | 16 | 40 | 850 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561275 FKM |
| 175561276 FKM | 40 | 16 | 50 | 1080 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561276 FKM |
| 175561277 FKM | 50 | 16 | 63 | 1670 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561277 FKM |
| 175561278 FKM | 65 | 16 | 75 | 2950 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561278 FKM |
| 175561279 FKM | 80 | 16 | 90 | 3600 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561279 FKM |
| 175561280 FKM | 100 | 16 | 110 | 4150 |
Inquiry Enter quantityCheck valve type 561 SYGEF Standard SF, with butt fusion spigots IR-Plus metric · Product code 175561280 FKM |
