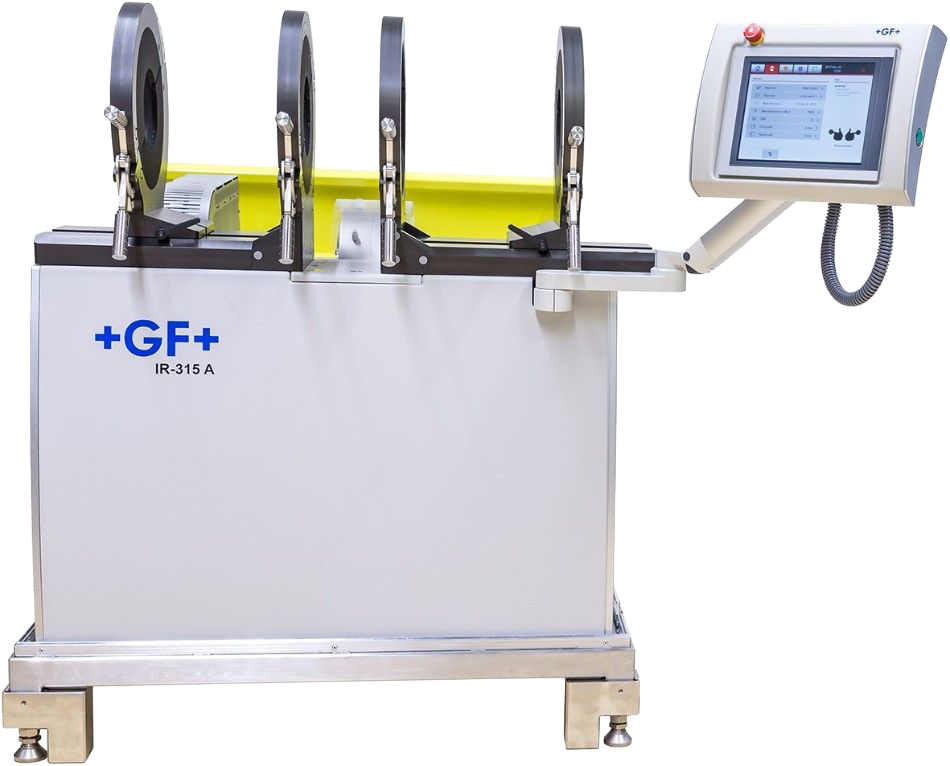

IR-315 A Automated Fusion Machine

Model:

• Fully equipped automated infrared fusion machine and working table designed for industrial applications and clean room conditions
• Welding of PVDF SYGEF (Standard/Plus), PP grey PROGEF (Standard/Plus), PE100 ecoFIT
• Dimensions d110-315 mm
• Automated facer, clamping slide and heater
• Integrated cooling system
• User friendly touch-screen interface 12.1” with various languages
• 4 USB interfaces, LAN Ethernet interface, 230 V Output
• Integrated video camera and temperature sensors
• Clamping inserts d110-280 mm (8 pcs. per dimension)
• End caps PE d110-315 mm (4 pcs. per dimension)
• Transport cases with integrated euro-pallete (fusion machine and working table)
• 3-phase AC (50/60 Hz) 400 V L1/L2/L3/N/PE
• Set of facing knives (2 pcs.)
• Torx key (T25) for facing knife
• Hexagon keys (10 mm + 8 mm)
• Fork key (24 mm)
• Cleaning brush
• Label printer (incl. ribbon 24 mm)
