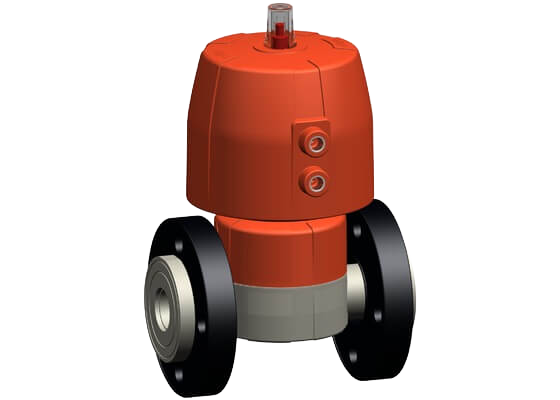

Diaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-H
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Těsnící plocha hladká/vroubkovaná
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Celková stavební délka dle EN 558
- Připojovací rozměry: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10,
BS 4504 PN 10 - Pracovní tlak: jednostranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
* PN: PTFE
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167627112 EPDM | 15 | 10/10* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627112 EPDM |
| 167627113 EPDM | 20 | 10/10* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627113 EPDM |
| 167627114 EPDM | 25 | 10/10* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627114 EPDM |
| 167627115 EPDM | 32 | 10/10* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627115 EPDM |
| 167627116 EPDM | 40 | 10/10* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627116 EPDM |
| 167627117 EPDM | 50 | 10/6* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627117 EPDM |
| 167627162 FKM | 15 | 10/10* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627162 FKM |
| 167627132 PTFE/EPDM | 15 | 10/10* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627132 PTFE/EPDM |
| 167627152 PTFE/FKM | 15 | 10/10* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627152 PTFE/FKM |
| 167627163 FKM | 20 | 10/10* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627163 FKM |
| 167627133 PTFE/EPDM | 20 | 10/10* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627133 PTFE/EPDM |
| 167627153 PTFE/FKM | 20 | 10/10* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627153 PTFE/FKM |
| 167627164 FKM | 25 | 10/10* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627164 FKM |
| 167627134 PTFE/EPDM | 25 | 10/10* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627134 PTFE/EPDM |
| 167627154 PTFE/FKM | 25 | 10/10* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627154 PTFE/FKM |
| 167627165 FKM | 32 | 10/10* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627165 FKM |
| 167627135 PTFE/EPDM | 32 | 10/10* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627135 PTFE/EPDM |
| 167627155 PTFE/FKM | 32 | 10/10* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627155 PTFE/FKM |
| 167627166 FKM | 40 | 10/10* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627166 FKM |
| 167627136 PTFE/EPDM | 40 | 10/10* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627136 PTFE/EPDM |
| 167627156 PTFE/FKM | 40 | 10/10* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627156 PTFE/FKM |
| 167627167 FKM | 50 | 10/6* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627167 FKM |
| 167627137 PTFE/EPDM | 50 | 10/6* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627137 PTFE/EPDM |
| 167627157 PTFE/FKM | 50 | 10/6* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167627157 PTFE/FKM |
